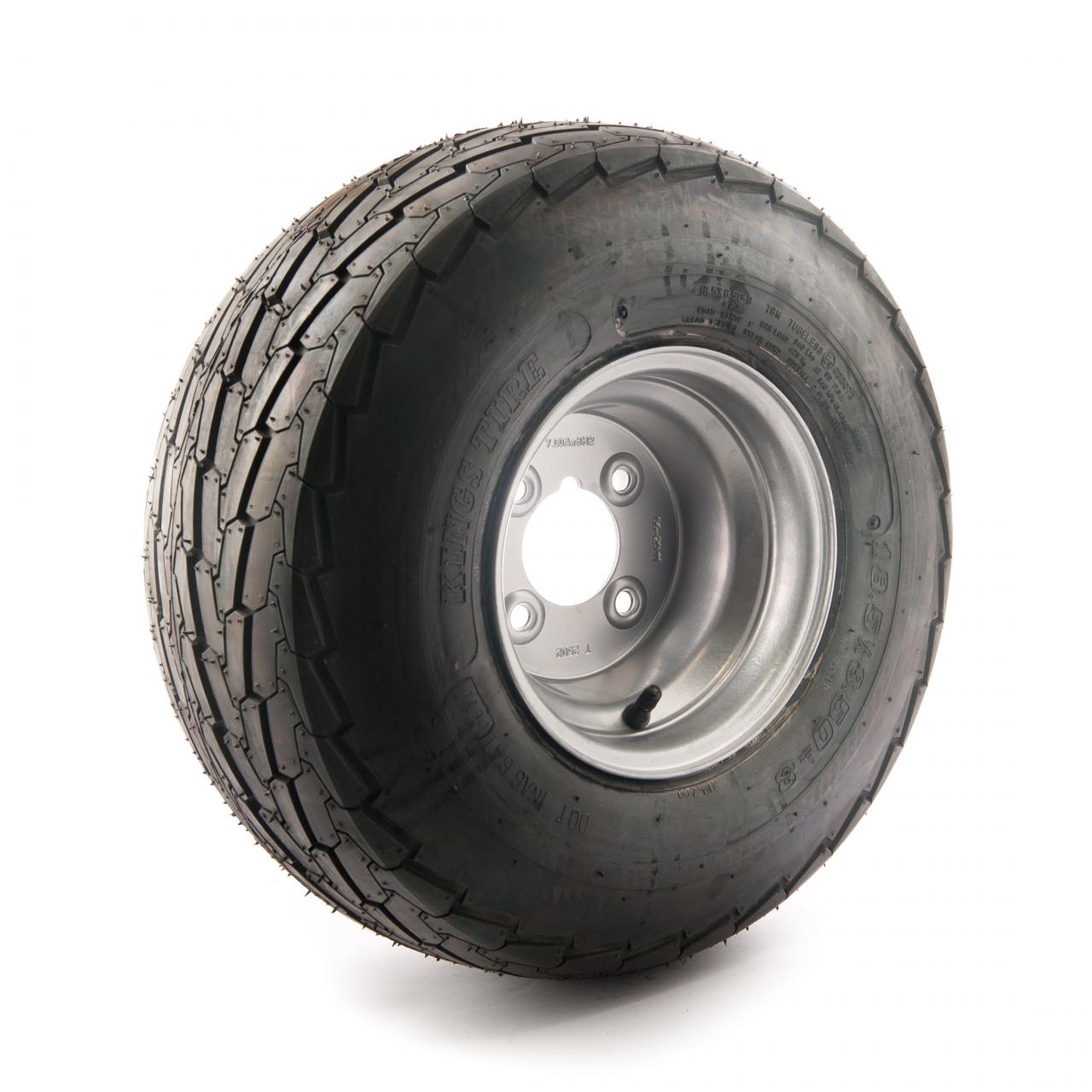

18.5 x 8.5-8", 4 Stud, 6 ply, Wheel Assembly (4" PCD)
Part No
WL262
Product Features:
○ Tyre Size: 18.5 x 8.5 - 8"○ Max Load: 350kg
○ PCD: 4"
○ Studs: Four Stud Fixing
○ Ply: Crossply: 6 ply
1 available in stock
£108.16 £90.13
18.5 x 8.5-8", 4 Stud, 6 ply, Wheel Assembly (100mm PCD)
Flotation tyre perfect for soft terrain such as sand, with 4 studs on 4" PCD rim.
Maximum load per wheel is 350kg, which makes this wheel ideal for use on smaller, unbraked, single axle trailers up to 750kg gross weight.
Complete trailer wheel: Rim & Tyre assembly.
Centre hole approx. 66mm diameter.
Cut-out for grease nipple on the hub.
Style of rim may vary.
| Rim Diameter | 8" |
|---|---|
| PCD (Stud Circle Diameter) | 4" |
| J (Rim Width) | 7J |
| ET (Centre Offset) | 0mm |
| Centre boss diameter | 65mm with cut out for grease nipple |
| Stud Hole Diameter | 11mm |
| No. of studs | 4 |
| Tyre Width | 18.5 inches |
| No. of Ply | 6 ply |
| Load Index | 78 |
| Speed Rating | M (80 mph max.) |
| Max load Single Axle (twin) | 425 kgs. per wheel @ 50 psi |
| Max PSI | 45 |
| Type | Crossply |
