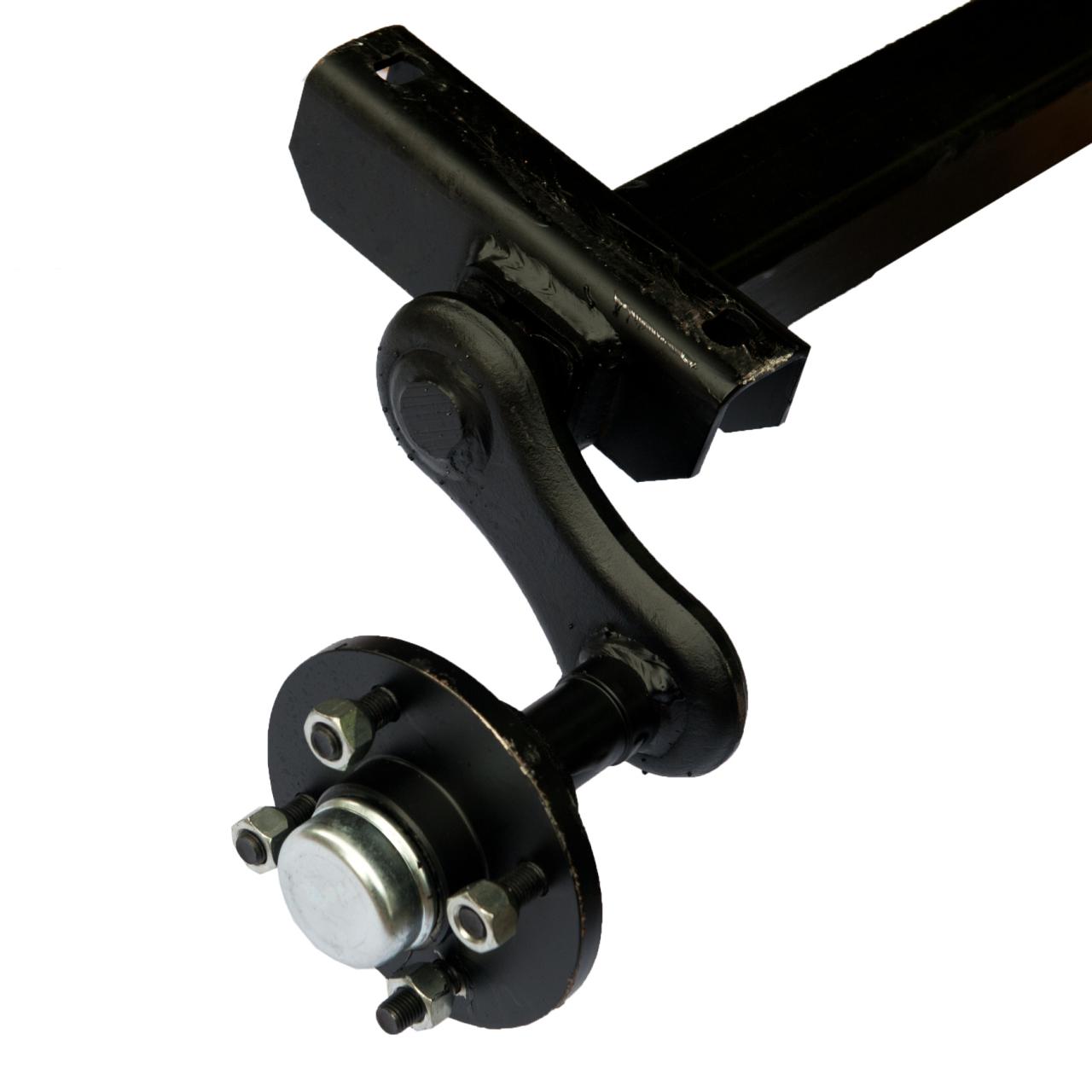

Unbraked Torsion Axle 4 on 4" PCD - 750kg

Part No
AX75044

Product Features:

  • 750kg Capacity
  • Fitted With 1" Tapered Bearings
  • 4 on 4" PCD
  • Drop Arm Travel: 22.5° / 50mm

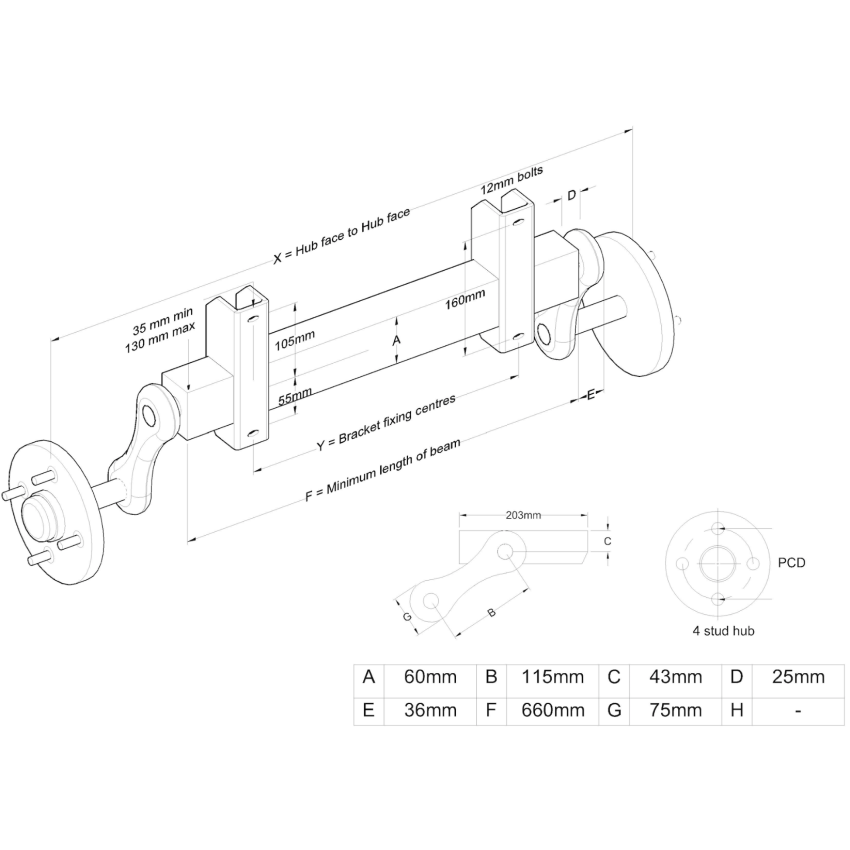

  • Made To Specifications - Enter X (Up To 1750mm) & Y Dimensions Below

Manufacturers' Lead Time Is 4-6 Weeks.

THIS PRODUCT IS CUSTOM MADE TO ORDER. DELIVERY NORMALLY 4-5 WEEKS.
£254.53 £212.11

Unbraked Torsion Axle - 750kg

Made to order torsion axle supplied with 4 on 4" unbraked hubs with 1" tapered bearings. 750kg capacity.

Please note that these axles are not suitable for flotation wheels.
